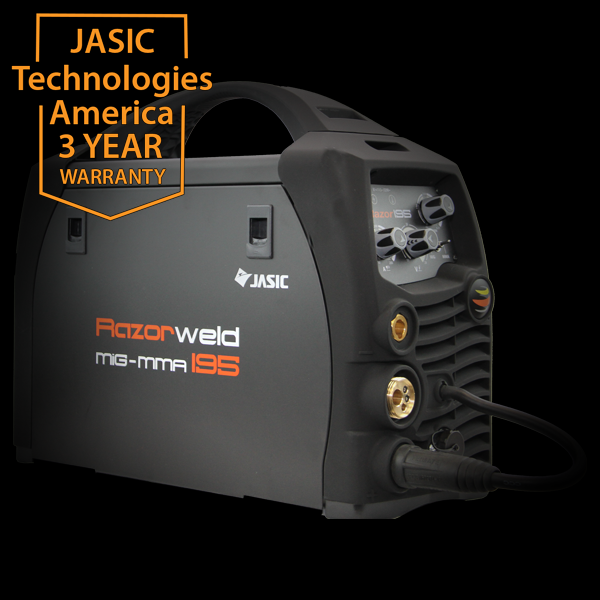

The RAZORWELD MIG195 is a new inverter-based portable MIG welding machine with added Stick function. The MIG function allows you to weld with both Gas Shielded and Gas-less wire applications.

Easy step-less adjustment of voltage and wire feed makes for easy setting of welding parameters giving excellent, professional welding results. Wire Inch gives easy feeding of the wire during set up without gas wastage and the Burn Back adjustment leaves the wire out ready for the next weld. Stick welding capability delivers easy electrode welding with high-quality results, including cast Iron, stainless and low hydrogen. An additional feature is the Spoolgun ready function that allows the simple connection of the SPGRWA200 Spoolgun for the use of thin or softer wires that don’t have the column strength to feed through standard MIG torches, such as aluminum wire. This is an industrial machine that is both lightweight and portable. Being 230/115V single phase gives great versatility. Ideal for general engineers, maintenance workshop and rural workshop, designed and built to our specification. Certified to – AS/NZ60974-1

Key Features

Latest IGBT inverter technology
MIG/MAG with Gas and Gasless wire function
Excellent MIG welding with CO2 gas & mixed gas
Euro style MIG torch connection
Internal wire feeder, gear driven
2lb to 11lb Spools
Adjustable Burn Back
Spool Gun Connection
Stepless voltage and wire feed control
Wire Inch
DC TIG with scratch start arc ignition
Stick Function
Excellent arc stability
Hot Start – Anti Stick
Industrial rated
Solid case construction
IP21S rating for environmental/safety protection
Tolerant to variable power supply

PURE WELDING PERFORMANCE

The Razorweld 195 MIG/STICK/TIG machine is the ideal machine for light industrial and panel work. The machine is lightweight and portable and perfect for site work. The MIG function provides superb arc characteristics when using either Gas Shielded or Gasless Wires. The machine features an adjustable Burnback control and easy to use panel layout to get your job done faster.
The machine is also a very capable MMA (Stick) welder capable of running most MMA Electrodes up to 5/32. An added feature of Hot Start helps when striking an Arc to minimize the Electrode sticking to the workpiece.

With the machine being Spool Gun ready a Razorweld Spool Gun is available if you want to run Aluminium wire without the changeover in the torch, liner and drive roller. The Spool Gun is an ideal way to use softer wires and not have to purchase larger spools of wire for small jobs.

*Always refer to the recommended polarity setup as stated on the electrode packaging

WARRANTY

JASIC Technologies America is pleased to offer a 3 year warranty on all Razorweld machine’s*.
JASIC Technologies America offers warranty across the United States with approved service centre’s throughout the country. Our focus is to assure the buyer is getting reliability, performance and peace of mind with a quality product.

JASIC Technologies America also offers an additional 6 months warranty free of charge when you register your product online via the Razorweld website.

*Please note warranty only applies to the power source only


PACKAGE CONTENTS

1 x Razor MIG 195 Power Source
1 x 10ft Tweco 2 Style MIG Torch
1 x 12ft Arc Welding lead set including twist lock electrode holder & 300 Amp earth clamp
1 x Razorflow Argon Regulator
1 x 230/115V Power Adapter
1 x 6.5ft Gas Hose with connections
1 x Instruction Manual

Optional:

15ft Tweco 2 Style MIG Torch
WP17V35/50 TIG Torch
19ft 200 Amp Spool Gun
